LED Red Flashing Solar Aviation Obstruction Light for Aircraft Warning

LED Red Flashing Solar Aviation Obstruction Light for Aircraft Warning

Application

AH-LS/D Low-intensity Double Solar-Powered Aviation Obstruction Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.

Advantage

1. International advanced solar panel reaching more than 10 years service life.
2. Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.
3. Low power consumption profession flash switch.
4. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
5. Strong impact lamp shape with PC material.
6. Strong anticorrosion and UV protection.
7. More than 7 days autonomy.(optional 15days)
8. Having lightning-protection function.
9. Side open of battery box can be open for maintenance convenience very easily.
10. New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.

Main Parameter

1.Mode: AH-LS/D
2.Standard: ICAO (Aerodromes Annex 14) Medium-intensity Type B,FAA L-864
3.Light intensity:32.5cd
4.Working mode: Flash mode(20-60times/minute)
5.Light source: LED
6.Service life of LED:100,000hours
7. Working way of two lights:
-Two light flashing by Main-standby way, Two lights flashing at the same or two lights flashing 1.5 second interval.(Flash mode, three ways)
-Two light working by Main-standby way, Two lights working at the same time.(Steady-burning way, two ways)
8.Supply voltage:DC3.7V(Solar powered Way),recyclable batteries with the lightest environmental and long life.
9. Material:
-Housing: PC
-Base: SUS304 stainless steel
10.Autonomy(without sunlight):at least 7 days(Option 15days)
11.Emitting Color: Red
12.Ambient Temperature:-40℃~+60℃
13.Wind load: 80m/s
14. Protection Standard: IP65

Packaging & Delivery

Packaging: Paper carton 1-9 piece/box.

Delivery: In 2-10 days after payment.

1. 2 years full warranty, 5 years maintenance since the purchasing date.

2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.

3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.

Product Descripton

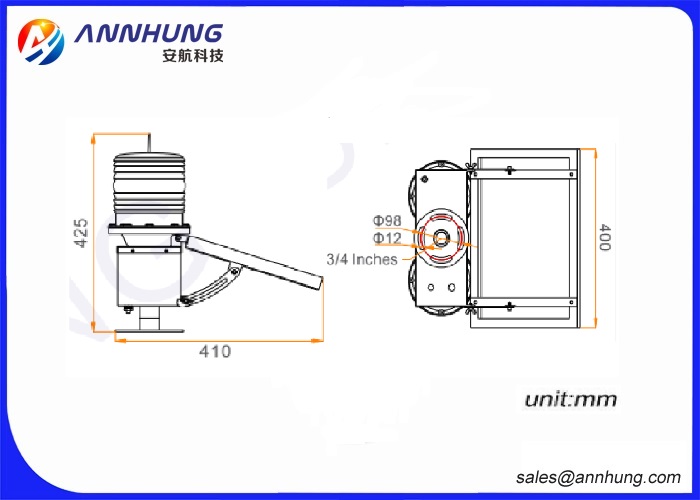

Dimension Drawing

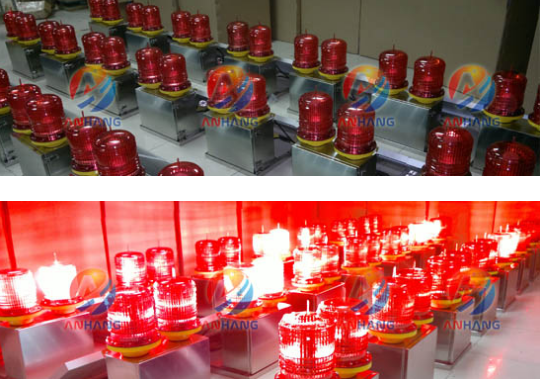

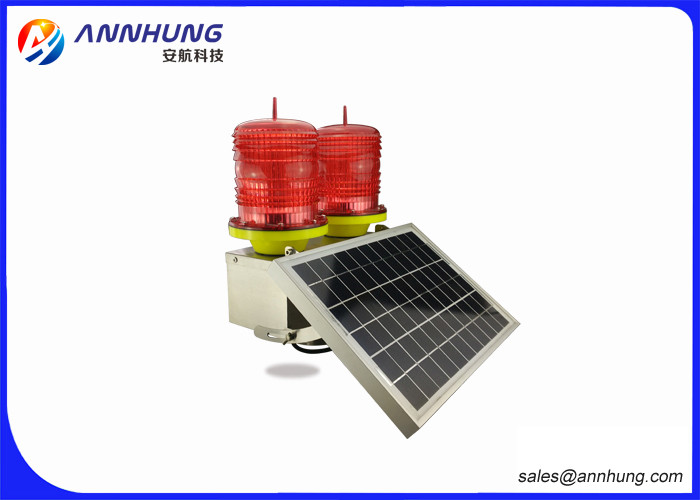

Product Picture

airport obstruction lights

solar powered lights

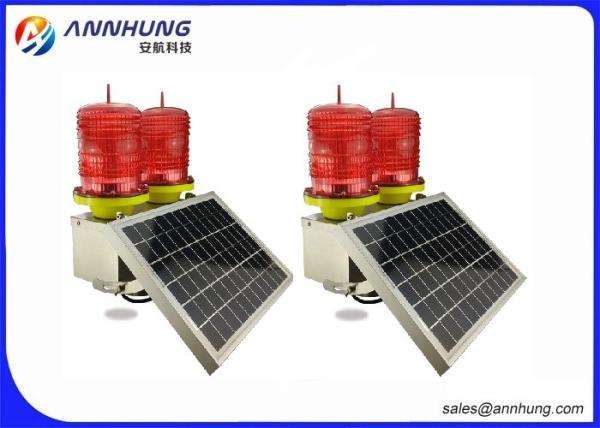

LED Red Flashing Solar Aviation Obstruction Light for Aircraft Warning Images
